Hardware Requirements
To build a dedicated CallOnTV terminal, you need a single-board computer (such as the all-in-one Raspberry Pi 500 or Raspberry Pi 5), a high-quality wide-angle webcam (Logitech MX Brio), and an HDMI-CEC compatible television.
1. Computer Selection: Raspberry Pi 500 vs Pi 5 vs Pi 4
We strongly recommend the Raspberry Pi 500 for the easiest living room setup. Its all-in-one keyboard design features a massive integrated internal cooling plate that completely eliminates the need for buying a separate case, heatsinks, or noisy cooling fans. It runs whisper-quiet under continuous 1080p Google Meet video calls and includes a built-in keyboard for hassle-free first-time Wi-Fi and account login.
| Form Factor | Model | Cooling Setup Required | Why Choose It |
|---|---|---|---|
| All-in-One (Recommended) | Raspberry Pi 500 | None (Built-in passive heatsink) | Plug-and-play ease of use; no case assembly, silent passive cooling, built-in keyboard. |
| Modular Compact | Raspberry Pi 5 (4GB / 8GB) | Active Cooler or Aluminum Case required | Maximum raw computing power in a tiny credit-card footprint tucked behind the TV. |
| Budget Modular | Raspberry Pi 4B (4GB / 8GB) | Heatsink + Quiet 5V Fan | Inexpensive, widely available, easily handles 1080p Google Meet video playback. |
2. Hardware Checklist
| Item | Component | Recommendation | Estimated Price | Purpose |
|---|---|---|---|---|
| 1 | Computer | Raspberry Pi 500 (or Pi 5 / Pi 4B 4GB+) | ~$70 – $90 | Hardware video decode for 1080p Google Meet and HDMI-CEC automation. |
| 2 | Webcam | Logitech MX Brio 4K (or Brio 4K) | ~$170 – $199 | 90° FOV captures the whole sofa; dual beamforming far-field mics pick up room audio. |
| 3 | MicroSD Card | 32GB+ SanDisk Extreme or Samsung EVO Plus | ~$10 – $15 | High random-write IOPS ensures responsive OS operation. |
| 4 | Power Supply | Official 27W (Pi 500/Pi 5) or 15W (Pi 4) USB-C Adapter | ~$12 – $15 | Stable power prevents under-voltage CPU throttling. |
| 5 | HDMI Cable | Micro-HDMI to HDMI 2.0 Cable | ~$8 – $12 | Carries high-definition video and digital HDMI-CEC control signals. |
| 6 | Cooling | Built-in on Pi 500; Passive case for Pi 5/4 | $0 (Pi 500) / ~$15 | Keeps thermals under 60°C during extended living room family calls. |
3. Webcam Selection: Why Logitech MX Brio is the Best
The Logitech MX Brio is our top recommended webcam for CallOnTV. Standard desktop webcams (65° to 78° FOV) create a "tunnel vision" effect that cuts off people sitting on either end of the living room sofa. The MX Brio provides a true 90° diagonal field of view, an advanced Sony STARVIS sensor for dim evening living room lighting, and dual beamforming noise-reducing microphones tuned for room acoustics.
| Camera Model | Field of View (FOV) | Microphone Quality | Living Room TV Suitability |
|---|---|---|---|
| Logitech MX Brio (4K) | 90° / 78° / 65° adjustable | Advanced dual beamforming noise-reducing mics | Top Recommendation (Best Optics & Audio) |
| Logitech Brio 4K | 90° wide FOV | Dual omnidirectional mics with noise suppression | Highly Recommended |
| Logitech C930e | 90° wide FOV | Dual stereo omnidirectional mics | Recommended (Budget 90° FOV) |
| Logitech C920 / C922 | 78° narrow FOV | Standard stereo mics | Usable for small rooms |
| Standard Webcams (C270/C310) | 55° – 60° narrow | Basic mic | Not Recommended (Too narrow) |
4. Television & HDMI-CEC Compatibility
CallOnTV uses HDMI-CEC (Consumer Electronics Control) via cec-utils and Wayland input automation. This protocol allows the Raspberry Pi to automatically wake your TV from standby and switch the video input to HDMI when a call starts.
HDMI-CEC Brand Names
Different TV manufacturers use proprietary marketing names for HDMI-CEC. Ensure this setting is enabled in your TV menu:
- Sony: BRAVIA Sync / BRAVIA Link
- Samsung: Anynet+
- LG: SimpLink
- Philips: EasyLink
- Panasonic: VIERA Link / EZ-Sync
- Sharp: Aquos Link
- Toshiba: Regza Link / CE-Link
- TCL / Hisense: CEC / HDMI Control
Tested TV Compatibility Matrix
| Brand | Model | HDMI-CEC Support | Status |
|---|---|---|---|
| Sony | KD-49X8300C | Full Power & Input Switch | Supported |
| Samsung | UA-55KU7970 | Full Power & Input Switch | Supported |
| Samsung | UA-46F6450AMSHD | Full Power & Input Switch | Supported |
| Samsung | UA-40D5950RM | Full Power & Input Switch | Supported |
| LG | 43LK5730PVC | Full Power & Input Switch | Supported |
| Samsung | UA-49K5890AWCHD | Firmware lacks CEC standby control | Not Supported |
| Daewoo | DLE-49H1800U | CEC hardware absent | Not Supported |
5. Power & Bandwidth Requirements

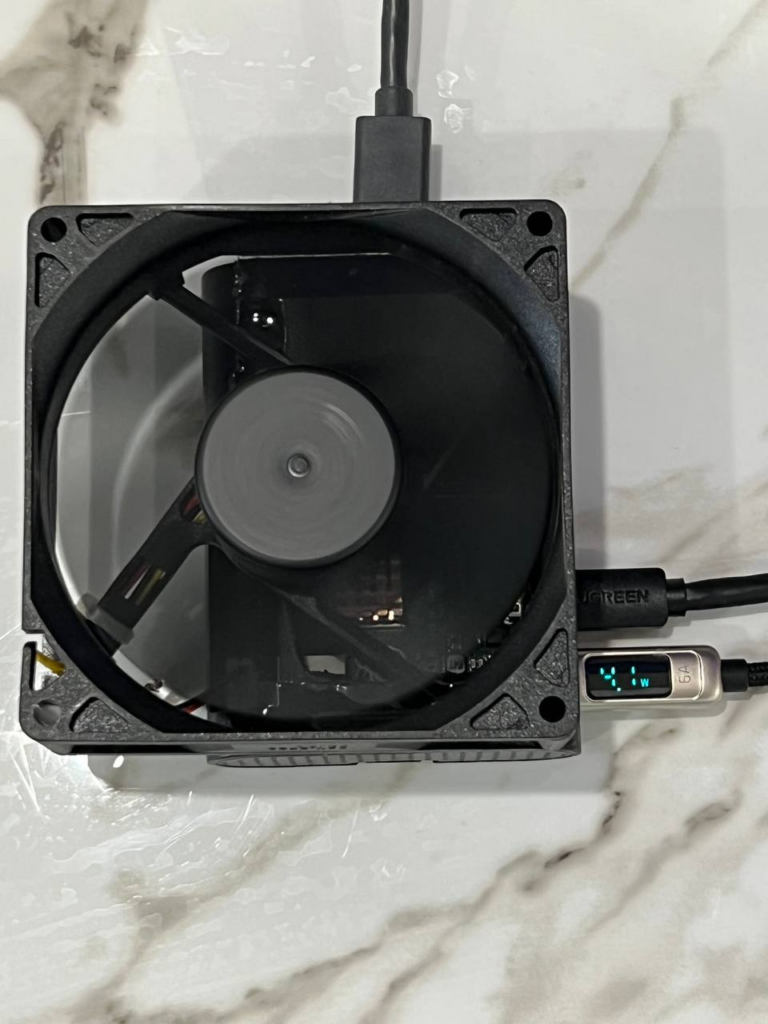

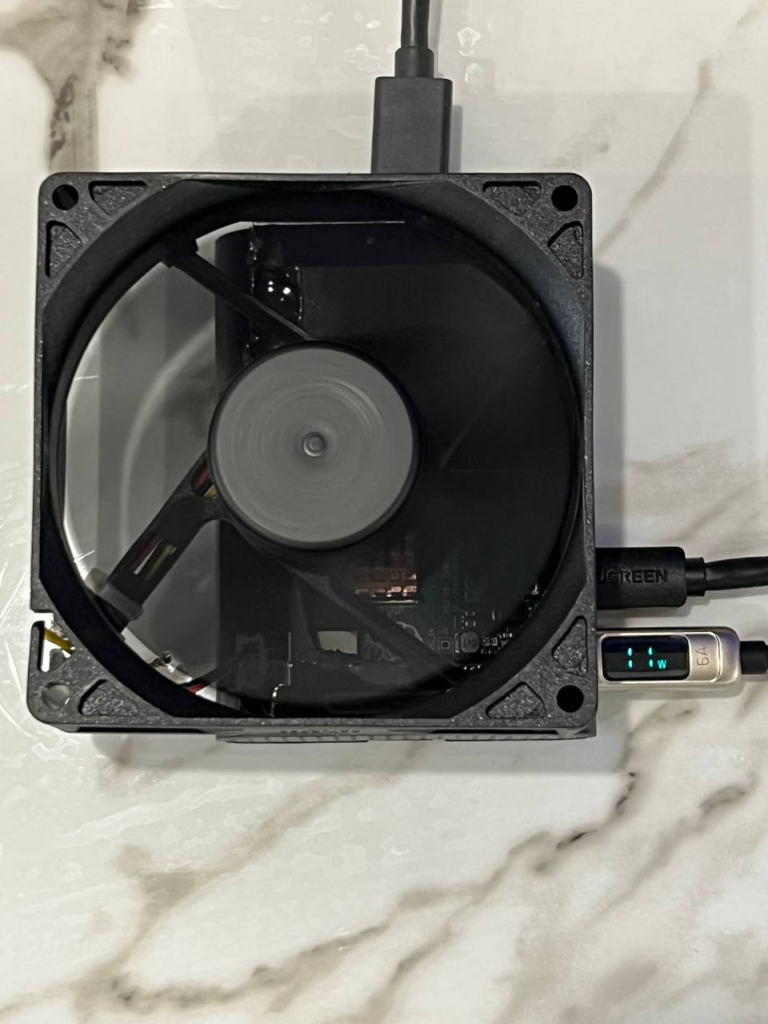

Measured Power Consumption
CallOnTV is remarkably energy-efficient compared to keeping a PC or commercial meeting room device running.
Bandwidth Guidelines for Google Meet
Google Meet automatically adjusts video bitrate based on network conditions:
| Video Quality | Minimum Outbound Bandwidth | Minimum Inbound Bandwidth | Ideal Latency |
|---|---|---|---|
| High Definition (1080p) | 3.2 Mbps | 3.2 Mbps | < 50 ms to 8.8.8.8 |
| Standard Definition (720p) | 1.5 Mbps | 2.0 Mbps | < 100 ms |
| Audio-Only Fallback | 0.5 Mbps | 0.5 Mbps | < 150 ms |
Next Step: Software Setup
With your hardware selected, proceed to the Software Setup Guide to configure Raspberry Pi OS, HDMI-CEC control scripts, and Google Meet integration.
